SKU: CT07/1.5:FFA

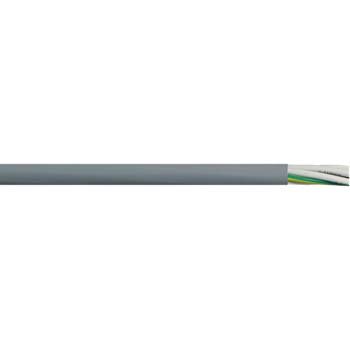

7x1.5mm CONTROL FLEX PVC/NBR 90C 300/500V GREY

Firstflex Multicore Control Cable

7x1.5mm CONTROL FLEX PVC/NBR 90C 300/500V GREY

Attributes
Conductor	1.5mm (48/0.20mm) Annealed plain copper stranded extreme flexibility
Cores	7 - White (numbered) plus 1 Green/Yellow Earth
Insulation	SPVC V-90.
Sheath	SER105 - Grey – as standard colour / Black – in some sizes subject to availability
Nominal O.D (mm)	10.3mm
Installed Temp Rating	Fixed -20°C to 90°C / Flexing -5°C to 80°C
Min. Bend Radius	Fixed 5 x cable diameter / Flexing 15 x cable diameter
Max Operating Voltage	Uo 318v. AC
Rated Voltage	Uo/U 300/500v
Max. Conductor Temp in Service	90°C (Current ratings are based on 30°C air temp)
