Active Electrical Suppliers

SKU: ML05/2.5BKG2:FFA

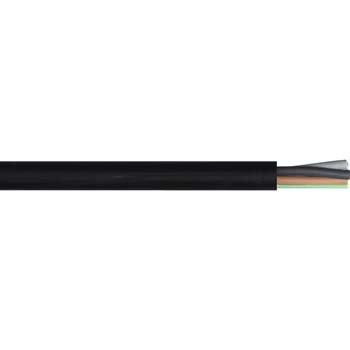

5x2.5mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Firstflex 5 Core Flexible Cable

5x2.5mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Attributes
Conductor	2.5mm² (50/0.25mm) Annealed tinned copper stranded high flexibility (Class 5).
Cores	5 - Blue, Brown, Black, Grey, Green/Yellow
Insulation	EPR R90
Jacket	CPE Elastomer Rubber, Black
Installed Temp Rating	Fixed -40°C to 90°C / Flexing -25°C to 90°C.
Rated Voltage	Uo/U 0.6/1kV.
Min. Bend Radius	Fixed 4 x cable diameter / Flexing 6 x cable diameter
Nominal O.D (mm)	15.3mm ± 10%
Current Rating	29 amp

Download
