SKU: PF03/0.5BK:FFA

.5MM 3C FLEX PVC BLACK

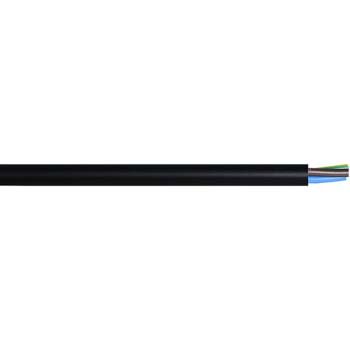

Firstflex 3 Core Flexible Cable

.5MM 3C FLEX PVC BLACK

Attributes
Conductor	0.5mm² (16/0.20mm) Annealed plain copper stranded high flexibility (Class 5).
Cores	3 - Blue, Brown, Green/Yellow
Insulation	SPVC V-90.
Jacket	SPVC - Black
Installed Temp Rating	Fixed -20 to 90°C / Flexing -5 to 75°C
Rated Voltage	Uo/U 250/440V
Min. Bend Radius	Fixed 7.5 x cable diameter / Flexing 15 x cable diameter
Nominal O.D (mm)	6.4mm
Current Rating	3 amp
