SKU: ML04/6.0BKG2:FFA

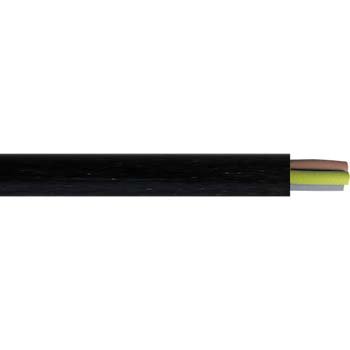

4x6.0mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Firstflex 4 Core Flexible Cable

4x6.0mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Attributes
Conductor	6.0mm² (84/0.30mm) Annealed tinned copper stranded high flexibility (Class 5).
Cores	4 - Brown, Black, Grey, Green/Yellow
Insulation	EPR R90
Jacket	CPE Elastomer Rubber, Black
Installed Temp Rating	Fixed -40°C to 90°C / Flexing -25°C to 90°C.
Rated Voltage	Uo/U 0.6/1kV.
Min. Bend Radius	Fixed 4 x cable diameter / Flexing 6 x cable diameter
Nominal O.D (mm)	17.9mm ± 10%
Current Rating	47 amp
