SKU: PF04/4.0BK:FFA

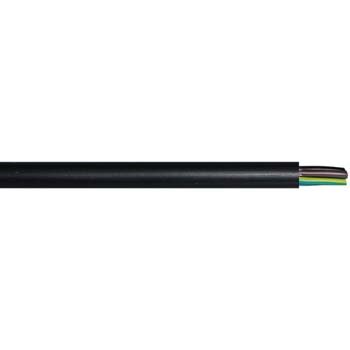

4.0MM 4C FLEX PVC BLACK

Firstflex 4 Core Flexible Cable

4.0MM 4C FLEX PVC BLACK

Attributes
Conductor	4.0mm² (60/0.29mm) Annealed plain copper stranded high flexibility (Class 5)
Cores	4 - Brown, Black, Grey, Green/Yellow
Insulation	SPVC V-90.
Jacket	SPVC - Black
Installed Temp Rating	Fixed -20 to 90°C / Flexing -5 to 75°C
Rated Voltage	Uo/U 250/440V
Min. Bend Radius	Fixed 7.5 x cable diameter / Flexing 15 x cable diameter
Nominal O.D (mm)	12.7mm
Current Rating	25 amp
