SKU: HO3G1.0B:FFA

3x1.0mm EPR/CPR 300/500 FLEX 90C INDUST.TINNED BLACK

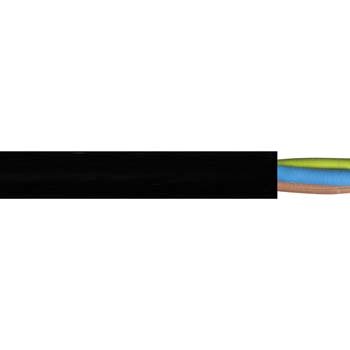

Firstflex 3 Core Flexible Cable

3x1.0mm EPR/CPR 300/500 FLEX 90C INDUST.TINNED BLACK

Attributes
Conductor	1.0mm² (32/0.20mm) Annealed plain copper stranded high flexibility (Class 5).
Cores	3 - Blue, Brown, Green/Yellow
Insulation	EPR R90.
Jacket	CPE Elastomer Rubber, Black
Installed Temp Rating	Fixed -40°C to 90°C / Flexing -25°C to 90°C.
Rated Voltage	Uo/U 0.6/1kV.
Min. Bend Radius	Fixed 4 x cable diameter / flexing 6 x cable diameter / Drag chains and spring reelers 10 x cable diameter
Nominal O.D (mm)	7.1mm ± 10%
Current Rating	20 amp
