SKU: PF04/2.5BK:FFA

2.5MM 4C FLEX PVC BLACK

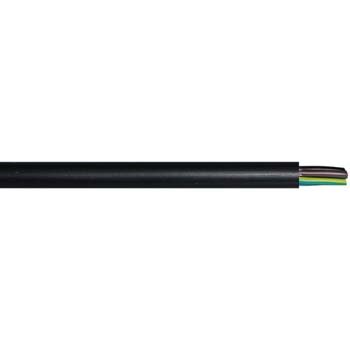

Firstflex 4 Core Flexible Cable

Login for price

2.5MM 4C FLEX PVC BLACK

Attributes
Conductor	2.5mm² (47/0.26mm) Annealed plain copper stranded high flexibility (Class 5)
Cores	4 - Brown, Black, Grey, Green/Yellow
Insulation	SPVC V-90.
Jacket	SPVC - Black
Installed Temp Rating	Fixed -20 to 90°C / Flexing -5 to 75°C
Rated Voltage	Uo/U 250/440V
Min. Bend Radius	Fixed 7.5 x cable diameter / Flexing 15 x cable diameter
Nominal O.D (mm)	11.5mm
Current Rating	20 amp
